1. Product overview |

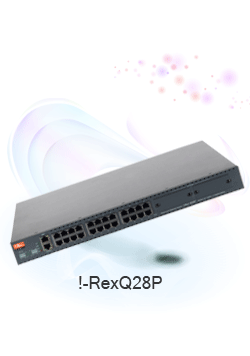

- !-RexQ28P is a 2 layer intelligentPoE (Power over Ethernet) switch withthe highly efficient switch engine of 12.8Gbps that supports various functions and performance.
- 24 PoE ports comply IEEE 802.3af standard and support 15.4 W electricity. !-RexQ28P switch manages maximum 16384 MAC addresses and support IEEE 802.1D/w/s standard STP that prevent disturbance due to network’s loop. As an advanced 2 layer switch it support not only 4094VLANs, 8 ports/ 12groups ofLAG, port mirroring, IGMP snooping but also DHCP relay, NTP/SNTP, LACP andself-loop isolation. Those functions assist powerful and efficient network management method.
- To cope with intelligent internet service, it supports advanced traffic management such as IEEE 802.1p CoS, Quality of Service (SP/WRR /DRR, 8queues per port), bandwidth control, storm control and access list control. It can be managed through CLI, Telnet and SNMP.In order to extend security of system maintenance, server based authorization function SSH v1/v2, RADIUS/ TACACS+, for an example is supported. And also installation of a fan that automatically controlled by the surrounding temperature improves the safety of product and reduces the electric power consumption, noise level.
- !-RexQ28Pis the intelligent switch with the best performance and optimum safety. It has 2 expandable slots that can attach various uplink modules and 24 10/100Base-TX ports supporting PoE function.
|
|
|
2. Specification |
|
Downlink Port |
24 Ports 10/100Base TX |
Uplink Port |
4 Ports GE Port, GPON ONU (2G Bandwidth) |
Console Port |
RS-232C, RJ-45 Connector (Default 115200bps) |
Management Port |
10/100Base TX |
|
|
|
Power Supply |
15.4W x 24 Ports, IEEE 802.3af Compliant |
|
|
|
Switching Capacity |
12.8Gbps Non-blocking, Store-and-Forward |
Throughput |
9.5Mpps (line rate 64 byte packet) switching |
MAC Address |
16K Entry |
Spanning Tree |
IEEE 802.1D/w/s STP |
Self-Loop Detection |
Self-Loop Isolation |
VLAN |
IEEE 802.1Q VLAN (4K VLANs), Protocol/MAC/Subnet based VLAN, Double Tagging |
Traffic Segmentation |
Egress Block Mask per Port |
LAG |
IEEE 802.3ad LACP, 8 Ports/12 Groups |
Flow Control |
IEEE 802.3x Flow Control |
Multicast |
IGMP v1/v2/v3 Snooping, MVR |
Port Mirroring |
Ingress/Egress/Ingress-Egress Mirroring |
|
|
|
Queue Scheduling |
SPQ/WRR/DRR, 8 Queues per Port |
Rate Limit |
64Kbps Granularity |
CoS |
IEEE 802.1p CoS |
Traffic Classification |
L2/L3/L4 |
|
|
|
Access Control List |
L2/L3/L4 |
Filter |
DHCP Reply Filter, NetBIOS/NBT Filter |
MAC Address Control |
MAC Address Learning Limitation |
Remote Access Authentication |
RADIUS/TACACS+ |
Secure Remote Access |
SSH v1/v2 |
ARP Spoofing Attack |
ARP Spoofing Block |
Flooding Attack |
MAC/Port/ARP Flooding Block |
|
|
|
Switch Access |
CLI (Console/Telnet/SSH) |
SNMP |
SNMP v1/v2C, MIB-II |
System Log |
Remote/Local Log |
Time Protocol |
NTP/SNTP |
|
|
|
Power Input |
Main Power : 100-240V, 50/60Hz, 1.0~0.5A |
PoE Power : 100-240V, 50/60Hz, 4A |
Maximum Power Consumption |
Main Power : 24.9W |
PoE Power : 400W |
Dimension |
W:440 x D:385 x H:43.6 (mm) for 19" rack |
Weight |
6Kg |
Temperature |
Operating: -20~60กษ, Storage: -40~70กษ |
Humidity |
Operating: 0~90%, Non-Condensing |
Certification |
KCC |
|
|
|
IEEE Standard |
IEEE 802.1Q (VLAN Bridging) |
IEEE 802.1v (Protocol based VLAN) |
IEEE 802.1D (Bridging & STP) |
IEEE 802.1w (Rapid STP) |
IEEE 802.1s (Multiple STP) |
IEEE 802.1p (CoS) |
IEEE 802.3 (CSMA/CD) |
IEEE 802.3x (Flow Control) |
IEEE 802.3z (Gigabit Ethernet) |
IEEE 802.3ab (Gigabit Ethernet (1000Base-T)) |
IEEE 802.3ad (Link Aggregation) |
IEEE 802.3af (Power over Ethernet) |
IETF RFC |
RFC 768 (UDP) |
RFC 791 (IP) |
RFC 792 (ICMP) |
RFC 793 (TCP) |
RFC 826 (Ethernet ARP) |
RFC 854 (Telnet) |
RFC 894 (Standard for the Transmission IP Datagrams over Ethernet Networks) |
RFC 1112 (IGMPv1) |
RFC 1157 (SNMP) |
RFC 1213 (MIB-II) |
RFC 1215 (SNMP Traps) |
RFC 1350 (TFTP) |
RFC 1492 (TACACS+) |
RFC 2030 (SNTPv4) |
RFC 2131 (DHCP) |
RFC 2138 (RADIUS Authentication) |
RFC 2236 (IGMPv2) |
RFC 2474 (DiffServ field in the IPv4) |
RFC 2475 (DiffServ) |
RFC 3046 (DHCP Relay Agent Information Options) |
RFC 1493 (Bridge MIB) |
RFC 2358 (Ethernet-like MIB) |
RFC 2674 (Q-Bridge MIB) |
RFC 2233 (Interface Group MIB) |
RFC 2747 (Agent Extensibility(AgentX) Protocol Version 1) |
RFC 1227 (SNMP MUX Protocol & MIB) |
|
|
|
M2G-GPON-P4 |
GPON Uplink (Rogue ONU detection) |
M2G-2SFP-SD1 |
2x 1G SFP |
M2G-1SFP-SD1 |
1x 1G SFP |
M2G-2T-P1 |
2x 1000Base TX |
M2G-1T-P1 |
1x 1000Base TX |
|
