| 1. Name and Function of each part |
- Name and function of each part of OIDD (Operation Information Display Device) is explained.

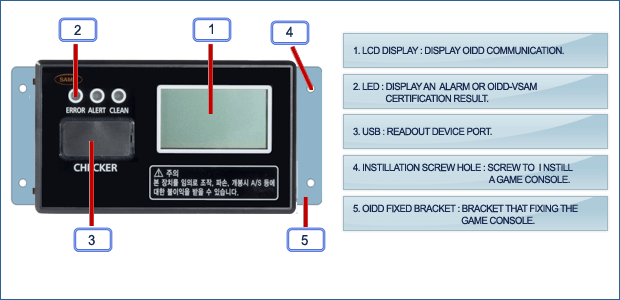

- 1, as a character LCD, it displays information communicated between OIDD and game console.
- 2 below shows the fixed bracket used to attach OIDD to the game console.
- 3 indicates 4 holes on fixed bracket that attaches to OIDD.
- 4 shows 3 LED of OIDD and it has 3 states of error, alert and clean. The lights will be turned on when there is an error, a security alert or when it is working normal respectively.
- 5 below is a communication port that connects a readout device.
- 6 is a cover that allows only the authorizers to access the communication port, 5 on the diagram.
- When the ejected prize is used in game console, the ejector is then directly connected to OIDD
|
|
| 2. Name and function of each part (Front) |
 |
|
| |

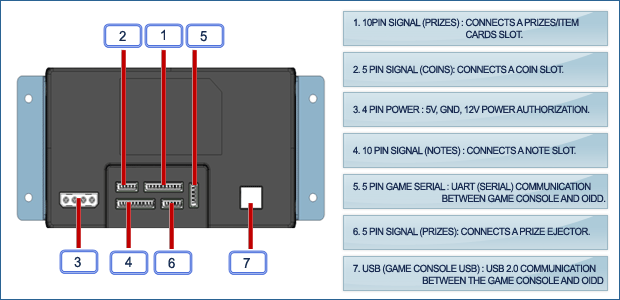

| 3. Name and function of each part (Rear) |
 |
|
|
|
|
