 Specification |
| |

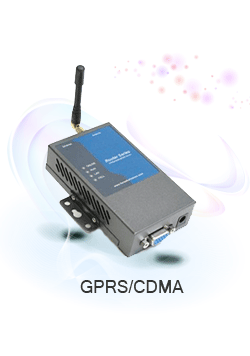

GPRS Router |
CDMA Router |
| Compatible Mobile
Networks |
GPRS CLASS10, CS1-CS4,
SMG31bits standard |
CDMA 1x |
| Cellular Frequency |
GSM850/900/1800/1900MHz |
CDMA 1X 800 Mhz/450Mhz; |
| Bandwidth |
Uplink 42.8Kbps
Downlink 85.6kbps |
Uplink 153.6Kbps
Downlink 153.6kbps |
| Interface |
10/100Base-Tx Ethernet (RJ45) |
10/100Base-Tx Ethernet (RJ45) |
| Protocol |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, SNMP |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, SNMP |
| Antenna |
50ohm SMA female |
50ohm SMA female |
| LED |
CELL, RUN, ONLINE, LAN |
CELL, RUN, ONLINE, LAN |
| Power Supply |
DC 5-25V, typical 12V/1A |
DC 5-25V, typical 9V/1A |
| Power Consumption |
130mA@12VDC (Average) |
30mA@9VDC (Average) |
| Software |
Local/ Remote firmware Upgrade
WEB console, SYSLOG |
Local/ Remote firmware
WEB console, SYSLOG |
| Dimensions(WxDxH) |
100mm x 60mm x 20mm |
100mm x 60mm x 20mm |
| Weight |
300g |
300g |
|
|
|
|
|
