- 2 layer switch with 2 expandable slots that can attach 24 10/100/1000Base-T ports and 2 ports of GB SFP, 2 ports 1000Base-T or G-PON uplink module
|
|
|
1. Product overview |

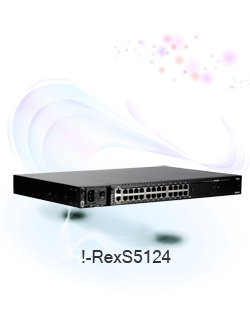

- !-RexS5124 is the 2 layer intelligent GB Ethernet switch that loads high performance switch engine allowing various function and performance
- !-RexS5124 switch that supports maximum 28 GB ports manages maximum 16384 MAC addresses, supports IEEE 802.1D/w/s standardSTP that prevents a disturbance due to network’s loop and EEE(Energy Efficient Ethernet) that minimizes energy consumption. As an advanced 2 layer switch it support not only 4094VLANs, 8 ports/ 12groups ofLAG, port mirroring, IGMP/MLD snooping but also DHCP relay, NTP/SNTP, LACP andself-loop isolation. Those functions assist powerful and efficient network management method.
- To cope with intelligent internet service, it supports advanced traffic management such as IEEE 802.1p IEEE 802.1p CoS, Quality of Service (SP/WRR /DRR, 8queues per port), bandwidth control, storm control and access list control. It can be managed through CLI, Telnet and SNMP.
- In order to extend security of system maintenance, server based authorization functionSSH v1/v2, RADIUS/ TACACS+, for an example is supported. And also installation of a fan that automatically controlled by the surrounding temperature improves the safety of product and reduces the electric power consumption, noise level. The power module and Fan module which easily attached and separated makes maintenance service even easier.
- !-RexS5124 switch support 24 100/1000Base-Ts and has expendable 2 slots for 1 or2 GB SFP / 1000Base-T module andG-PON up-link module for G-PON network connection. It is the product with the best function and performance and optimum safety.
|
|
| |
| 2. Specification |
|
Downlink Port |
24 Ports 10/100/1000Base TX |
Uplink Port |
2 Slots (Hot-swappable) |
Console Port |
RS-232C, RJ-45 Connector (Default 115200bps) |
Management Port |
10/100Base TX |
|
| |
|
Switching Capacity |
56Gbps Non-blocking, Store-and-Forward |
Throughput |
41.7Mpps (line rate 64 byte packet) switching |
MAC Address |
16K Entry |
Spanning Tree |
IEEE 802.1D/w/s STP |
Self-Loop Detection |
Self-Loop Isolation |
VLAN |
IEEE 802.1Q VLAN (4K VLANs), Protocol/MAC/Subnet based VLAN, Double Tagging |
Traffic Segmentation |
Egress Block Mask per Port |
LAG |
IEEE 802.3ad LACP, 8 Ports/12 Groups |
Flow Control |
IEEE 802.3x Flow Control |
Multicast |
IGMP v1/v2/v3 Snooping IGMP Proxy |
Port Mirroring |
Ingress/Egress/Ingress-Egress Mirroring |
DHCP Relay |
DHCP Relay with option 82 |
|
| |
|
Queue Scheduling |
SPQ/WRR/DRR, 8 Queues per Port |
Rate Limit |
64Kbps Granularity |
CoS |
IEEE 802.1p CoS |
Traffic Classification |
L2/L3/L4 |
|
| |
|
Access Control List |
L2/L3/L4 |
Filter |
DHCP Reply Filter, NetBIOS/NBT Filter |
MAC Address Control |
MAC Address Learning Limitation |
Remote Access Authentication |
RADIUS/TACACS+ |
Secure Remote Access |
SSH v1/v2 |
ARP Spoofing Attack |
ARP Spoofing Block |
Flooding Attack |
MAC/Port/ARP Flooding Block |
|
| |
|
Switch Access |
CLI (Console/Telnet/SSH) |
SNMP |
SNMP v1/v2C, MIB-II |
RMON |
4 Groups (1,2,3,9) |
DoS Attack |
Flood Guard (MAC/Port), ARP Spoofing Block |
Cable Diagnostics |
Software UTP Cable Tester |
System Log |
Remote/Local Log |
Time Protocol |
NTP/SNTP |
Dying Gasp |
SNMP trap on Power-down |
|
| |
|
Power Input |
100-240V, 50/60Hz, 1.0~0.5A, 탈/실장 형 |
Maximum Power Consumption |
45W |
Dimension |
W:440 x D:290 x H:43.6 (mm) for 19″ rack |
Weight |
4.0Kg |
Temperature |
Operating: 0~50℃, Storage: -40~70℃ |
Humidity |
Operating: 20~80%, Non-Condensing |
Certification |
KCC (Class A) |
|
| |
|
IEEE Standard |
IEEE 802.1Q (VLAN Bridging)
IEEE 802.1v (Protocol based VLAN)
IEEE 802.1D (Bridging & STP)
IEEE 802.1w (Rapid STP)
IEEE 802.1p (CoS)
IEEE 802.3 (CSMA/CD)
IEEE 802.3x (Flow Control)
IEEE 802.3ab (Gigabit Ethernet (1000Base-T))
IEEE 802.3z (Gigabit Ethernet)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3az (Energy Efficient Ethernet) |
IETF RFC |
RFC 768 (UDP)
RFC 791 (IP)
RFC 792 (ICMP)
RFC 793 (TCP)
RFC 826 (Ethernet ARP)
RFC 854 (Telnet)
RFC 894 (Standard for the Transmission IP Datagrams over Ethernet Networks)
RFC 1112 (IGMPv1)
RFC 1157 (SNMP)
RFC 1213 (MIB-II)
RFC 1215 (SNMP Traps)
RFC 1350 (TFTP)
RFC 1492 (TACACS+)
RFC 1757 (RMON MIB)
RFC 2030 (SNTPv4)
RFC 2131 (DHCP)
RFC 2138 (RADIUS Authentication)
RFC 2236 (IGMPv2)
RFC 2474 (DiffServ field in the IPv4)
RFC 2475 (DiffServ)
RFC 3046 (DHCP Relay Agent Information Options)
RFC 1493 (Bridge MIB)
RFC 2358 (Ethernet-like MIB)
RFC 2674 (Q-Bridge MIB)
RFC 2233 (Interface Group MIB)
RFC 2747 (Agent Extensibility(AgentX) Protocol Version 1)
RFC 1227 (SNMP MUX Protocol & MIB) |
|
| |
| |
M2G-GPON-P4 |
GPON Uplink (Rogue ONU detection) |
M2G-2SFP-SD1 |
2x 1G SFP |
M2G-1SFP-SD1 |
1x 1G SFP |
M2G-2T-P1 |
2x 1000Base TX |
M2G-1T-P1 |
1x 1000Base TX |
|
