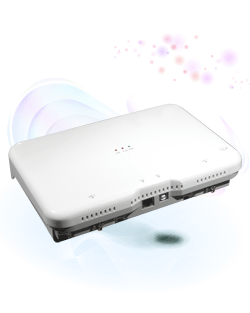

DAS



1. Overview
  • An indoor intermediary system used to maximize network
    quality of LTE or WCDMA and to solve the problems with
    the weak signal area  .LTE or WCDMA

2. Characteristics
¨ç LTEsupports 2*2 MIMO, WCDMAsupports 1*2 SIMO.
¨è HCPE-J(PoE Extender) can be configured when distance
between HCHU-J(PSE) and HCRU-J   (PD) is over 100m.
¨é Provide ‘Delay Control’ function.
¨ê Provide ALC function which maintain output level and
output auto shutdown function.
¨ë Provide optional function Optic Switch which automatically
switchover when there is a system failure.


3. Specification
Order Item   Standard
1 Frequency ( MHz ) FWD 1839.9~1859.9
RVS 1744.9~1764.9
2 Gain FWD 34dB
RVS 35dB
3 Input range FWD -10dBm ~ +15dBm/Total
RVS -55dBm/Total
4 Max. output FWD 24dBm/Ant
RVS -20dBm/Ant
5 Heat dissipation   Natural convection
6 Operating temperature   0~+40¡É
7 Storage temperature   -40~+70¡É
8 humidity 0~50°C 5~95%
9 SIZE(mm)   350(W) x 300(H) x 100(D)
