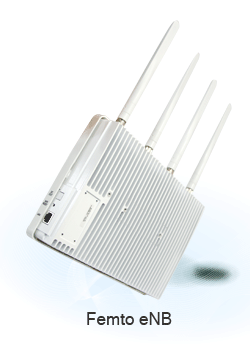

FEMTO


1. Overview
  • The subminiature repeater used to solve the problem
    with the area with weak signal inside of the building
    with internet installed.

2. Characteristics
¨ç Each carrier provide bandwidth of maximum 10 MHz
and high speed bulk packet service.
¨è Easy instillation due to its lightness (less than 3kg)
and built in PCB antenna .
¨é An ultra-base station providing easy instillation and
no limitation for instillation place
¨ê The structure designed for efficient heat release
even without the cooling system.
¨ë Perform DL OFDMA/UL SC-FDMA channel process
which support LTE standard physical layer


3. Specification
Order Item System Standard Notes
1 LTE frequency 839~849 (MHz)/ 884 ~ 894 (MHz) BAND5
2 Max. output LTE = 17dBm/path LTE & WiFi : 2T2R
Internal WiFi = 17dBm/path * (option: Internal WiFi or External WiFi)
3 LTE BW 10MHz
4 No. subscriber 16 UEs
5 Mounting structure Wall mount
6 Synchronisation Enhanced IEEE1588
7 Power DC 12V, MAX 6A (Adaptor)
8 Power consumption LTE = 22W (typical), 24W (max) When using External WiFi
Internal WiFi = 13.5W (max) Max. 40W
9 WiFi Internal WiFi Module Factory Set
External WiFi support structure
10 Temperature condition 0~50°C IEC60068/IEC60068-2-1
11 Humidity condition 0~95%
12 SIZE(mm) 290(W) × 54(D) × 190(H)
