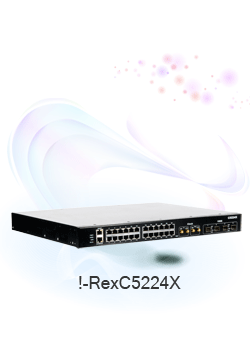

- !-RexC5224X switch is a gigabit Ethernet switch with various intelligent functions has high performance and 4 x 1G or 10Gbe port
|
|
|
| 1. Model |
¢º !-RexC5224X : Managed 24 100/1000BASE-TX+ 4 1G or 10Gbe Ports Carrier Ethernet Switch |
|
|
| |
| 2. Performance |
¢º !-RexC5224X : Wire speed L2 Switching of 95.2Mpps for 64byte packet, 128Gbps Fabric |
|
|
| |
| 3. L2 Feature |
¢º IEEE 802.1D Bridge
¢º ITUT-T G.8032 ERPS(Ethernet Ring Protection Switching)
¢º IEEE 802.1Q static VLAN 4K
¢º Private VLAN (static)
¢º Port isolation (static)
¢º Rapid spanning tree (RSTP)
¢º Static Link Aggregation and IEEE 802.3ad LACP
¢º IGMPv2 snooping
¢º DHCP client
¢º Port Mirroring |
|
|
| |
| 4. QoS |
¢ºTraffic classes (1, 2, or 4/8 active priorities)
¢ºPort default priority
¢ºUser priority
¢ºScheduler priority
¢ºQoS control list (QCL mode)
¢ºStorm control for UC, MC, and BC
¢ºPolicing and shaping per port and per queue |
|
|
| |
| 5. Security |
¢ºIEEE 802.1x Port-base Access Control
¢ºWeb and CLI authentication and authorization
¢ºACLs for filtering, policing, and port copy, including ACL wizards |
|
|
