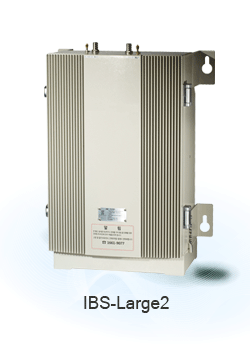

IBS-Large2


1. Overview
  • An indoor intermediary system that amplifies signal
    using wireless RF to expand service providing area
    and to provide service to weak signal area.

2. Characteristics
¨ç A dual band repeater that support 2G(CDMA,EVDO)+4G(LTE).
¨è Highly efficient when modulating signal is amplified due
to the power amplifier with outstanding linearity and
power efficiency
¨é RF interface within a country uses wireless Air
interface connection.
¨ê Designed to have doors and warranty service is available
for Modular units.
¨ë The housing does have FAN and use natural cooling
method.

3. Standard
Order Item CDMA LTE LTE
1 Frequency range [MHz] FWD 1860~1870 884~894 2110~2120
RVS 1770~1780 839~849 1920~1930
2 Gain FWD 57dB 55dB 58dB
RVS 45dB 45dB 45dB
3 Input range FWD +5dBm/Total +10dBm/Total +1dBm/Total
RVS -65dBm/Total -65dBm/Total -65dBm/Total
4 Max. output FWD 44.7dBm/Path 43dBm/Path 46dBm/Path
RVS -20dBm/Path -20dBm/Path -20dBm/Path
5 Heat dissipation
6 Operating temperature
7 Storage temperature -40¡É ~ +70¡É
8 Humidity 5~95% (Non-condensing)
9 SIZE(mm) 290(W) x 607(H) x 341(D)
