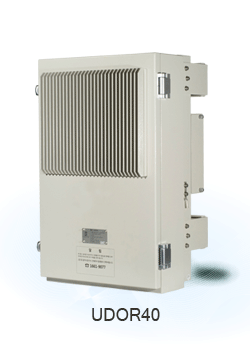

| 1. Overview |
| An integrated optical repeater (800§Ö/1.8§×) being
used to provide smooth service to the service area
with weak signal of CDMA2000 1x/EVDO and LTE. |
| |
| 2. Characteristics |
| ¨ç |
Provide the service combining CDMA and LTE service. |
| ¨è |
Highly efficient due to superior linear current amplifier
minimizing a loss due to spurious radiation
characteristic. |
| ¨é |
The advantages of digital signal utilizing practical
expandability (Multi-drop, Cascade). |
| ¨ê |
Monitoring, alarm function, control function, editing and
equipment setting with wired and wireless communication
and alarm history can be inquired using local GUI function |
|
| |
|
| 3. Specification |
| Order |
Item |
CDMA |
LTE |
| 1 |
Frequency range [MHz] |
FWD |
1860~1870 |
884~894 |
| RVS |
1770~1780 |
839~849 |
| 2 |
Gain |
FWD |
55dB |
55dB |
| RVS |
45dB |
45dB |
| 3 |
Input range |
FWD |
+5dBm |
+10dBm |
| RVS |
-65dBm |
-65dBm |
| 4 |
Max. output |
FWD |
43dBm/Total |
43dBm/Total |
| RVS |
-20dBm/Total |
-20dBm/Total |
| 5 |
Heat dissipation |
Natural Convection |
| 6 |
Operating temperature |
-30¡É ~ +60¡É |
-30¡É ~ +60¡É |
| 7 |
Storage temperature |
-40¡É ~ +70¡É |
-40¡É ~ +70¡É |
| 8 |
Humidity |
5~95% (Non-condensing) |
5~95% (Non-condensing) |
| 9 |
SIZE(mm) |
SU Standard |
370(W) x 590(H) x 285(D) |
|
|
|
|
|
