| 1. Overview |

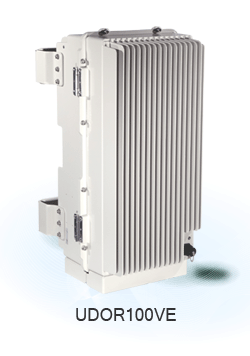

| A Multi Band (800§Ö/1.8§×) optical repeater that
used in large cities that has large telephone traffic
and small town that the signal is weak, to expands
the coverage of the base station and solve the
issues with the area with weak signals |
| |
| 2. Characteristics |
| ¨ç |
Provide the service combining CDMA and LTE service. |
| ¨è |
Highly efficient due to superior linear current amplifier
minimizing a loss due to spurious radiation characteristic. |
| ¨é |
The advantages of digital signal utilizing practical
expandability (Multi-drop, Cascade). |
| ¨ê |
The backup battery has the overdischarge and
overcharge protection circuit |
| ¨ë |
Monitoring, alarm function, control function, editing
and equipment setting with wired and wireless
communication and alarm history can be inquired
using local GUI function |
|
| |
|
| 3. Specification |
| Order |
Item |
CDMA |
LTE |
| 1 |
Frequency [MHz] |
FWD |
1860~1870 |
884~894 |
| RVS |
1770~1780 |
839~849 |
| 2 |
Gain |
FWD |
57dB |
57dB |
| RVS |
45dB |
45dB |
| 3 |
Input range |
FWD |
+5dBm/Total |
+10dBm/Total |
| RVS |
-65dBm/Total |
-65dBm/Total |
| 4 |
Max. output |
FWD |
45dBm/Path |
43dBm/Path |
| RVS |
-20dBm/Path |
-20dBm/Path |
| 5 |
Heat dissipation |
Natural Convection |
| 6 |
Operating temperature |
-30¡É ~ +60¡É |
-30¡É ~ +60¡É |
| 7 |
Storage temperature |
-40¡É ~ +70¡É |
-40¡É ~ +70¡É |
| 8 |
Humidity |
5~95% (Non-condensing) |
5~95% (Non-condensing) |
| 9 |
SIZE(mm) |
290(W) x 607(H) x 341(D) |
|
|
|
|
|
