Introduction

Introduction   !-RexC5224X


  • 삼지전자의 !-RexC5224X 스위치는 높은 성능과 4 x 1G or 10Gbe 포트를 가진 풍부한 기능의 지능형 기가빗 이더넷 스위치 입니다.
1. Model

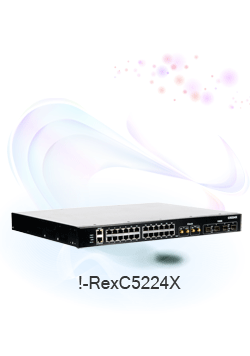

▶ !-RexC5224X   :  Managed 24 100/1000BASE-TX+ 4 1G or 10Gbe Ports Carrier Ethernet Switch

2. Performance

▶ !-RexC5224X   :  Wire speed L2 Switching of 95.2Mpps for 64byte packet, 128Gbps Fabric

3. L2 Feature

▶ IEEE 802.1D Bridge
▶ ITUT-T G.8032 ERPS(Ethernet Ring Protection Switching)
▶ IEEE 802.1Q static VLAN 4K
▶ Private VLAN (static)
▶ Port isolation (static)
▶ Rapid spanning tree (RSTP)
▶ Static Link Aggregation and IEEE 802.3ad LACP
▶ IGMPv2 snooping
▶ DHCP client
▶ Port Mirroring

4. QoS

▶Traffic classes (1, 2, or 4/8 active priorities)
▶Port default priority
▶User priority
▶Scheduler priority
▶QoS control list (QCL mode)
▶Storm control for UC, MC, and BC
▶Policing and shaping per port and per queue

5. Security

▶IEEE 802.1x Port-base Access Control
▶Web and CLI authentication and authorization
▶ACLs for filtering, policing, and port copy, including ACL wizards
