Communication Business > Repeater >
Optical Repeater

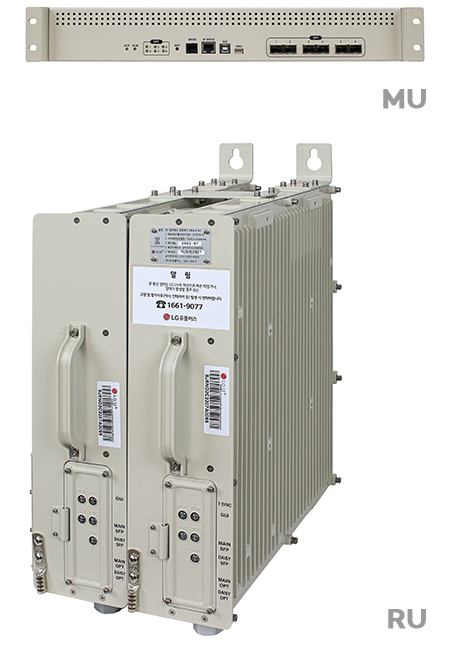

LGU+_5G Multi-band Optic Repeater
Overview

The System is an indoor device for In Building Service and Multi-Band Option Repeater for LGU+, corresponding to LGU+3Band(LTE 800MHz, 2.1GHz, and 5G 3.5GHz).

Characteristics
  • The System consists of MU and RU and corresponds and supports LTE(2*2 MIMO), 5G(4*4 MIMO)
  • The Interface between MU and RU consists of the system, using Optic Fiber Cable(12.5Gbps).
  • When consisting of the system in Star method, it supports to connect maximum 6 RU per MU.
  • It is available for connecting maximum 5 RUs in Cascade way(Available for maximum 30 RUs per MU).
Spec.
Item 5G Multi-band Optic Repeater
Frequency 839MHz ~ 849MHz
884MHz ~ 894MHz
1920MHz ~ 1940MHz
2110MHz ~ 2130MHz
3400MHz ~ 3500MHz
Output Power 800M Band : +43dBm / 10MHz
2.1G Band : +46dBm / 20MHz
3.5G Band : +46dBm / 100MHz
Port LTE(2*2 MIMO) / 5G(4*4 MIMO)
Item Description
Dimensions (mm, W*H*D) MU : 482.6 x 66 x 380
RU : 270x490x470
Weight MU : 5.3Kg, RU : 48Kg
Operating Temperature -10 ~ +50℃
Cooling Natural Convection
* MU: Main Unit, RU: Remote Unit, MIMO: Multiple-Input Multiple-Output
